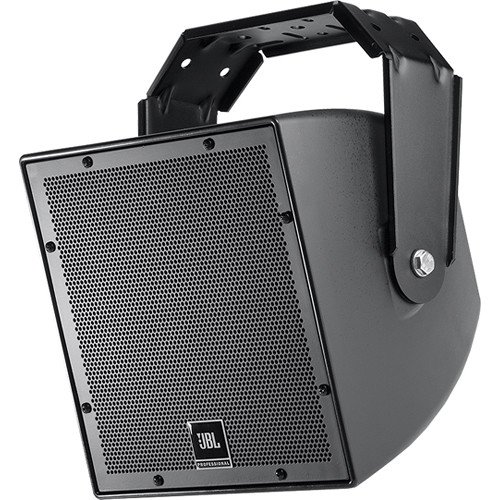

JBL AWC82 All-Weather Outdoor Speaker 8 Inch 2-Way Passive Coaxial Loudspeaker, 250W, Black

Description The black JBL AWC82 is a single all-weather passive coaxial loudspeaker designed for high-output, full-range sound reinforcement in various indoor and outdoor applications such as sports facilities, stadiums, fairgrounds, cruise ships, and background music/paging systems.Capable of up to 250W long-term power handling, it incorporates an 8″ Kevlar-reinforced woofer and a 1″ fluid-cooled high-frequency driver to produce a high maximum peak SPL of 124 dB and a wide frequency response of 80 Hz to 20 kHz (-10 dB). The coaxial speaker configuration yields a 120 by 120° dispersion pattern for consistent coverage.The paintable ABS enclosure boasts an IP56 rating for effective weather resistance and a sturdy steel grille backed with open-cell foam for additional protection. An integrated multi-tap transformer—configurable via a rear-panel tap selector—allows operation in 70/100V systems or 8-ohm low-impedance setups. A color-matched U-bracket is included for ease of installation. FeaturesCoaxial 8″ Woofer and 1″ HF Driver250W Power Handling120 x 120° Pattern ControlHighly Weather-Resistant IP56 RatingIntegrated Multi-Tap TransformerSupports 70V, 100V, or 8-Ohm OperationPassive High-Slope Crossover NetworkSonicGuard HF Overload ProtectionIncludes U-Bracket for Easy InstallationSpeccificationsKey SpecsActive/PassivePassiveNumber of Included Speakers1Speaker Configuration2-WayPower HandlingFor 2 Hours: 250 W For 100 Hours: 200 WConstant Voltage / Transformer Taps70 V 200 / 100 / 50 / 25 W or 8 Ohms Bypass 100 V 200 / 100 / 50 W or 8 Ohms BypassImpedance8 Ohms (Nominal)HF Driver1x 1″ / 2.54 cm Polymer Compression DriverLF Driver1x 8″ / 20.32 cm Kevlar WooferFrequency Range80 Hz to 20 kHz -10 dBColorblackSpeakerActive/PassivePassiveNumber of Included Speakers1Speaker Configuration2-WayPower HandlingFor 2 Hours: 250 W For 100 Hours: 200 WConstant Voltage / Transformer Taps70 V 200 / 100 / 50 / 25 W or 8 Ohms Bypass 100 V 200 / 100 / 50 W or 8 Ohms BypassImpedance8 Ohms (Nominal)Transformer Wattage200 WEnclosure TypeSealedDriversHF Driver1x 1″ / 2.54 cm Polymer Compression DriverHF Voice Coil1″ / 2.54 cmLF Driver1x 8″ / 20.32 cm Kevlar WooferLF Voice Coil2″ / 5.08 cmPerformanceFrequency Range80 Hz to 20 kHz -10 dBFrequency Response100 Hz to 20 kHz ±3 dBMaximum SPL118 dB (Continuous) 124 dB (Peak)Sensitivity94 dB (Average)Coverage Angle120° H x 120° VDirectivity8.4 dB (Directivity Index) 8.1 dB (Directivity/Q Factor)CrossoverHigh-Pass: 1.8 kHz, 18 dB/Octave (Passive) Low-Pass: 1.8 kHz, 12 dB/Octave (Passive)ProtectionsTransducer OverdriveConnectivityInputs/Outputs1x Barrier Strip 2-Pole Speaker Input 1x Barrier Strip 2-Pole Speaker ThruMaximum Wire Gauge12 AWG / 2.5 mmPhysicalEnvironmental ResistanceDust/Water-Resistant (IP56)ColorblackMounting1x M10 Bracket Point (Each Side) 1x M6 Suspension (Rear)Construction MaterialABS, Glass, Metal GrilleDimensions12 x 11.8 x 11.8″ / 30.48 x 29.97 x 29.97 cmWeight21.5 lb / 9.8 kg (without Bracket) 25.5 lb / 11.6 kg (with Bracket)Packaging InfoPackage Weight29.5 lbBox Dimensions (LxWxH)16.7 x 16 x 15.8″T2S1M2E0/72-PM
