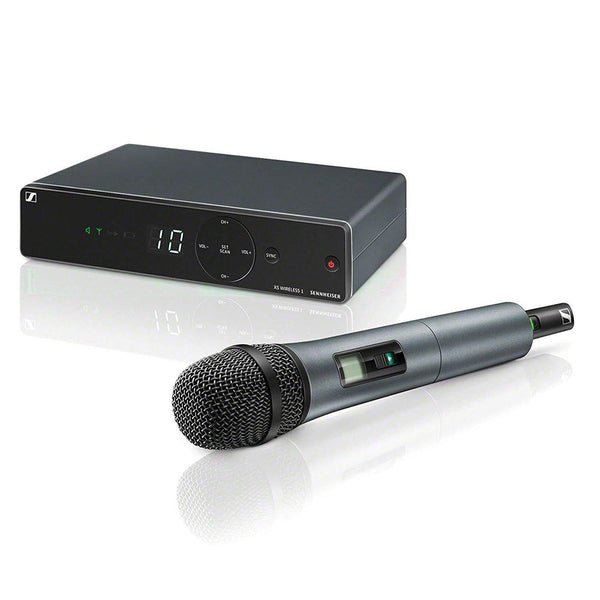

Sennheiser XSW 1-835 (BC-Band: 670 – 694 MHz), Wireless Handheld Microphone System

Description The Sennheiser XSW 1-835 (BC-Band: 670 – 694 MHz), offers exceptional sound and ease of use in a sleek, portable wireless system. The transmitter uses a cardioid capsule with a warm, smooth sound and excellent feedback rejection. Convenient features like one-button scan and sync are housed in a streamlined receiver with integrated antennas. Intuitive icon-based indicators make operation a breeze. Up to 10 systems can be used simultaneously. The Sennheiser XSW 1-835 features an 835 capsule. For a great all-round microphone, you can’t beat the 835. Its cardioid response pattern produces superior feedback and off-axis rejection. Its balanced frequency response delivers a warm, smooth sound while its SPL handling is second to none. You’ll also appreciate its resistance to handling noise.FEATURESSPECIFICATIONSDimensions: approx. 200 x 42 x 127 mmTHD, total harmonic distortion: ≤ 0.9%Pickup pattern: cardioidSignal-to-noise ratio: ≥ 103 dBARF output power: 10mWSwitching bandwidth: up to 24 MHzOperating time: approx. 10 hrsModulation: Wideband FMOutput voltage: 1/4″ (6.3 mm) jack socket (unbalanced): 6 dBu, XLR socket (balanced): 12 dBuHousing: Rugged ABS housingDynamic range: dynamicFrequency: 8 frequency banks, each with up to 10 factory-preset channelsFrequency rangeA: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHzC: 766-790MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHzBC: 670-694MHzSensitivity: Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)Input sensitivity: 1.5 mV / PaAdjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB stepsAudio adjustment range: 45 dB, adjustable in 5-dB stepsLine / Mic level: 20 dB, switchableTemperature Range: operation: 0°C to 40°C, storage: –20°C to 70°CReceiver Principle: double superheterodyneDiversity principle: Antenna switching diversity via internal antennas Receiver:Weight: approx. 340gPower supply: Receiver: 12 V DC nom. / 300 mAAF frequency response: Receiver: 50 to 16,000 Hz (–3 dB) Microphone:Weight: approx. 245gPower supply: Microphone: 2 AA size batteries, 1.5 VAF frequency responseSKM 825: 80-14,000 HzSKM 835: 80-16,000 Hz What’s in the box?1 x EM-XSW 1 receiver1 x SKM 835-XSW handheld transmitter1 x MZQ 1 Clip Microphone1 x NT 12-5 CW power supply2 AA batteries
